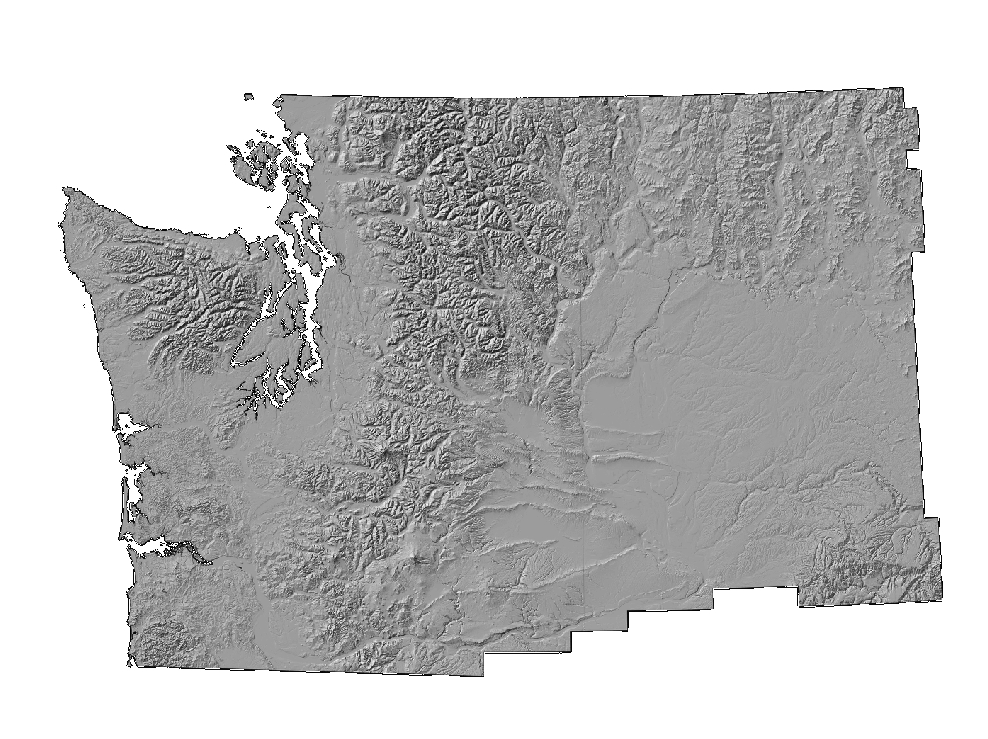

30-meter Mosaicked DEM, Greyscale hillshade, and elevation-shaded (colorized) hillshade for entire state of Washington
Learn more by reading the GIS FAQ 🗺
Summary
DEM and greyscale hillshade are available as 30-meter grid data for subsequent raster processing and analysis for areas outside of extent of higher resolution Lidar and 10-meter USGS data.
Colorized (elevation-shaded) hillshade is resampled at 900 feet, providing a coarser but manageable file for cartographic backdrop.
Description
Single 30-meter mosaick for Digital Elevation data for Washington State.
Standard derived grey-scale hillshade and elevation-shaded hillshade using green to brown shading.
Layer information
| Layer Name | SURFACE_WashingtonStateUSGSDEMHillshade |
| Subject Category | Imagery |
| Title | 30-meter Mosaicked DEM, Greyscale hillshade, and elevation-shaded (colorized) hillshade for entire state of Washington |
| Feature Count | 1 |
| Feature Type | Raster |
| Next Update | As needed |
| Spatial reference | None |
| Control ID | None |
| Place Keywords | Pacific NW, Washington State |
| Theme Keywords | Elevation, Colorized Hillshade, Elevation Model, Hillshade, Topography |
| Supplemental Information |
All these datasets exist only at KeyRegion index level. |
Attribute information
|
OBJECTID
From ESRI |
Description
Internal feature number. DomainSequential unique whole numbers that are automatically generated. |
|
Shape
From ESRI |
Description
Feature geometry. DomainCoordinates defining the features. |
|
Shape_Length
From Esri |
Description
Length of feature in internal units. DomainPositive real numbers that are automatically generated. |
|
Shape_Area
From Esri |
Description
Area of feature in internal units squared. DomainPositive real numbers that are automatically generated. |
|
MosaicID
No Source Noted |
Description
Not Found DomainNot Found |
Contact information
| Maintained by | KCGIS Center |
| Primary |
KCGIS Center
giscenter@kingcounty.gov |
Terms of Use
| License | Terms of use and copyright |
Summary
DEM and greyscale hillshade are available as 30-meter grid data for subsequent raster processing and analysis for areas outside of extent of higher resolution Lidar and 10-meter USGS data.
Colorized (elevation-shaded) hillshade is resampled at 900 feet, providing a coarser but manageable file for cartographic backdrop.
Description
Single 30-meter mosaick for Digital Elevation data for Washington State.
Standard derived grey-scale hillshade and elevation-shaded hillshade using green to brown shading.
Contact information
| Maintained by | KCGIS Center |
| Primary |
KCGIS Center
giscenter@kingcounty.gov |
Terms of use and copyright
| License | Terms of use and copyright |
Change history
| 5/1/2005 |
