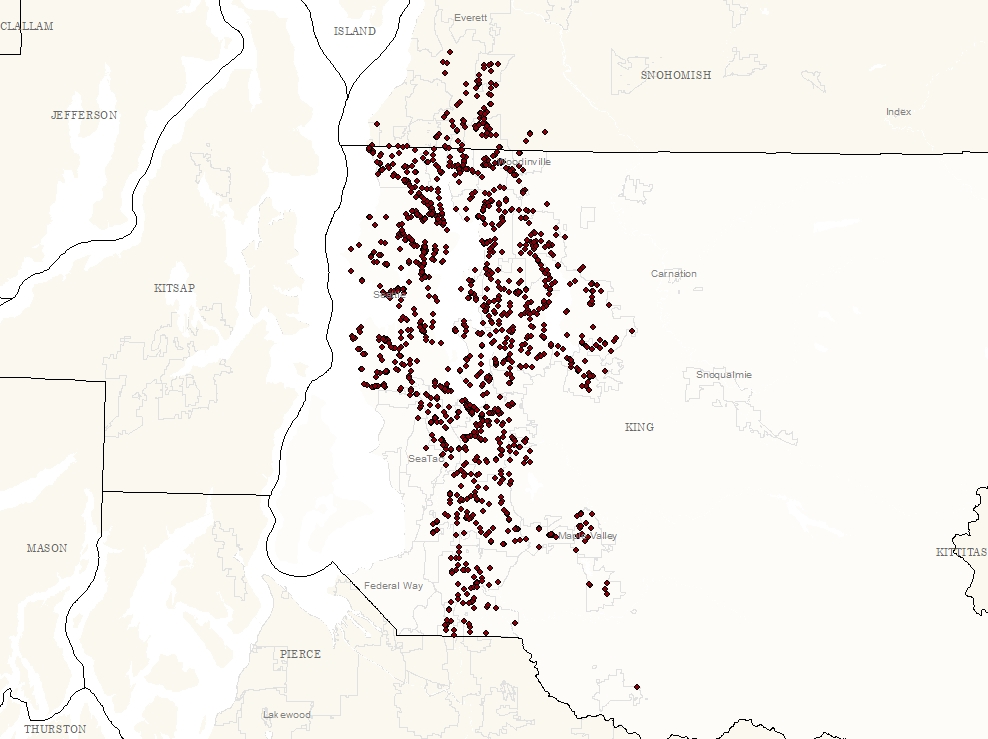

Wastewater's Regional Flow Monitoring Locations

Learn how to get an ArcGIS Online account 🗺

Use this Data

Links How to use in ArcGIS Pro
Sharing Status	Not Public

Summary

The flow monitoring database is a historical dataset of wastewater flow monitorig assets.

Since it's origin ~2000, has been used to manage installed meter locations: historical, current and potential future install locations.

For use in various caiptal planning projects over through the regional wastewater system.

Description

The flow monitoring datasets included installed meter locations of all historic and current installed locations.

With information regarding, meter type, pipe diameters, addressess of instal locations, the local sewer agency in effect along with the meter ID and contributing agencies affected by local vs. county sewer line installations.

Layer information

Layer Name	flowmonitors_point
Subject Category	Utilities
Title	Wastewater's Regional Flow Monitoring Locations
Feature Count	1846
Feature Type	Point
Next Update	Quarterly
Spatial reference	EPSG:2926
Control ID	2048
Place Keywords	Pacific NW, King County, WA, Washington State
Theme Keywords	Utility, Environment
Supplemental Information	None

Attribute information

Meter_ID From King County	Description Unique name given to site: generated by maintenance hole name when available. Domain Not Found
Shape From WTD	Description Feature geometry. Domain Coordinates defining the features.
S_DATE From WTD	Description Monitor Install Date Domain Not Found
E_DATE From WTD	Description Monitor Removal Date Domain Not Found
PROJECT From WTD	Description Name of Project whom requested monitoring installation. Domain I/I, Boundary, Barton GSI, LTM, TECH REVIEW, H2S, H2S Lining, Model, Initial I/I, Brandon, Soos Creek, North Creek, WestPoint, Brightwater, BW_KMH, CSO, ESI4Lining, DFM, SPUFlowT, Mini, NCreekI/I, EnrgyPrg, Modeling, CSOBsnStudy, BW_KWH, GSI, OTHER, CSI
ACTIVE From WTD	Description Status of Monitoring Activity: Yes- Actively Monitoring \| No - Not actively monitoring Domain Not Found
ADDRESS From WTD	Description Nearest address of location at which meter is installed. Domain Not Found
HEIGHT From WTD	Description Height of the pipe in which monitoring equipment is/was installed. Domain Not Found
WIDTH From WTD	Description Width of the pipe in which monitoring equipment is/was installed. Domain Not Found
OBJECTID From Esri	Description Internal feature number. Domain Sequential unique whole numbers that are automatically generated.
ID_FAC From WTD	Description Maintenance Hole Name when available. Domain Not Found
DEPTH_FAC From WTD	Description Depth from Rim of Maintenance Hole to Invert of Pipe. Domain Not Found
OWNER_FAC From WTD	Description Owner of the Maintenance Hole where monitoring equipment is/was installed. Domain Not Found
JURISDICTION From WTD	Description Sewer Agency identified geographically where monitoring equipment is/was installed. Domain Not Found
CITY_NAME From WTD	Description City identified geographically where monitoring equipment is/was installed. Domain Not Found
DETAIL From WTD	Description Field used by Point of Contact to run maintenance on database. Domain Not Found
Meter_Type From WTD	Description Name of the monitoring equipment used to monitor sewer flows. Domain Flo Tote, SIGMA, Flo-Dar, ADS, PS- PI, MMI, PS-Telog, ADS, PS-ADS_Spi, PS, Telog

Contact information

Maintained by	DNRP - Wastewater Treatment
Primary	Shaun O'Neil Shaun.O'Neil@kingcounty.gov
