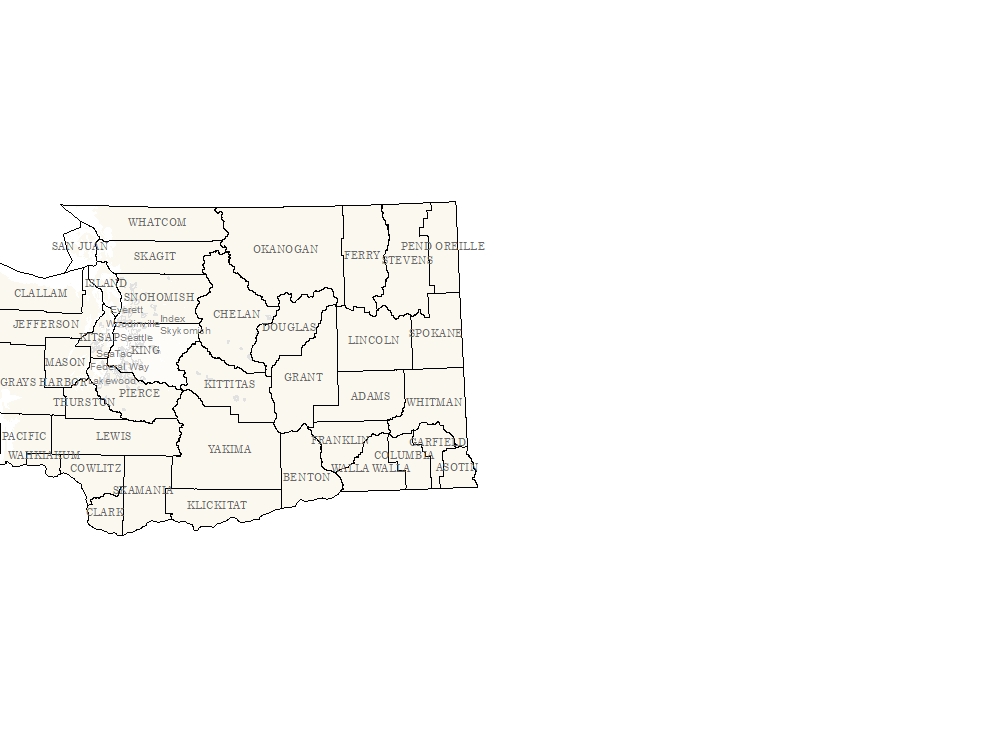

Index to Project Image Library Orthoimagery and Scans

Learn how to get an ArcGIS Online account 🗺

Use this Data

Links How to use in ArcGIS Pro
Sharing Status	Not Public

Summary

For determining the availabiltity of imagery in a given area since the extents of the project imagery are highly variable.

Description

Index to extents of images in Project Image Library portion of King County Spatial Data Warehouse.

The data shown by this extents index are available via the LibTool interface.

These datasets comprise the group of orthoimagery data from a range of vintages and projects, but not considered one of the enterprise-level orthoimagery datasets.

Datasets represented span from 1936 to present.

Layer information

Layer Name	ortho_index_area
Subject Category	Survey
Title	Index to Project Image Library Orthoimagery and Scans
Feature Count	2389
Feature Type	Polygon
Next Update	As needed
Spatial reference	EPSG:2926
Control ID	754
Place Keywords	Pacific NW, WA, Washington State, King County
Theme Keywords	None, Reference Grids, Survey
Supplemental Information	None

Attribute information

OBJECTID From ESRI	Description Internal feature number. Domain Sequential unique whole numbers that are automatically generated.
DATASETID No Source Noted	Description Not Found Domain Not Found
SHAPE From ESRI	Description Feature Geometry Domain Coordinates defining the features
IMGCATALOG From King County	Description Name of image catalog and name of data folder Domain Text string - Project name _ YEAR - Image Specification
IMGTYPE From King County	Description Type of image Domain Non-Ortho (Raw Scan) - Unrectified stereo imagery
GEONAME No Source Noted	Description Not Found Domain Not Found
IMGYEAR From King County	Description Year of imagery Domain Four digit year
TITLE From King County	Description Imagery title Domain Title of project - cocantenated string
INSDW From King County	Description Whether in SDW or not Domain No - No - all Project Image Data is not in SDW proper
IMGSPEC From King County	Description General description of image specifications Domain color - Color (scanned) color infrared - Color infrared imagery multispectral - Multi-band multispectral imagery natural color - Natural color (RGB) imagery pan-sharpened - Pan sharpened imagery (higher resolution Pan imagery enhanced with lower resolution color imagery) panchromatic (b&w) - Black and white (panchromatic) imagery
FILEFORMAT From King County	Description Format of original (offline) imagery Domain bil - Band - interleaved img - ERDAS img format Sid - LizardTech MrSid format sid - LizardTech MrSid format sid;tif - Both MrSid and TIFF format tif - TIFF format Tif - TIFF format tif;sid - TIF and MrSid format
COVERTYPE From King County	Description What type of leaf cover Domain Either leaf-off or leaf-on
NUMIMGS From King County	Description Number of images in original (offline) dataset Domain Integer
SQMILES From King County	Description Square miles covered by dataset Domain Decimal
IDXAVAIL From King County	Description Whether index is available to original (offline) imagery Domain No or Yes, and what index if Yes
bandconfig From King County	Description Imagery band configuration Domain Number of bands and description of band configuration
DYNRGE From King County	Description Dynamic range of imagery Domain 8 - 8-bit imagery 16 - 16-bit imagery
DBSIZE From King County	Description Size of original (offline) dataset Domain In GB or MB
AVAILABILITY No Source Noted	Description Not Found Domain Not Found
DATECAPT From King County	Description Date range of acquisition Domain YYYY - YYYY or YYYYMM - YYYYMM
CONTACTORG From King County	Description Contact organization Domain Text description
THUMBNAIL From King County	Description Name of thumbnail image Domain Text description
COMMENTS From King County	Description Comments Domain Text description
PROJSYSTEM From King County	Description Projection system of final data Domain Text description
PROJZONE From King County	Description Zone of projected data Domain Text description
XGSD From King County	Description X pixel dimension Domain Integer or decimal
YGSD From King County	Description Y pixel dimension Domain Integer or decimal
GSDUNIT From King County	Description Units of pixel dimension Domain Text
PROJDATUM From King County	Description Projection datum Domain Text
FILENAME From King County	Description File name of dataset Domain Filename as text or general format of name if multiple files
METADATA From King County	Description Path to metadata document Domain Text
MOSAICID From King County	Description Mosaic identifier for use in applications Domain 200001.00000000 to 200112.00000000 by
Shape.STArea() From SQL Server	Description Returns the area of a geometry instance in square units, based on the spatial reference identifier (SRID) of the geometry. Domain Double
Shape.STLength() From SQL Server	Description Returns the total length of the elements in a geometry instance. Domain Double

Contact information

Maintained by	KCGIS Center
Primary	KCGIS Center giscenter@kingcounty.gov

Terms of Use

License	Terms of use and copyright
