Steep Gradient on Roadways
Learn how to get an ArcGIS Online account 🗺
Use this Data
|
Links
How to use in ArcGIS Pro |
|
| Sharing Status | Not Public |
Summary
To show general areas of steep grade on Initial use has been to show gradient for those features for the BIKE_FACILITIES_LINE (bikemap) layer.
Therefore only selected features were encoded.
At the same time not all features apply to this layer.
Description

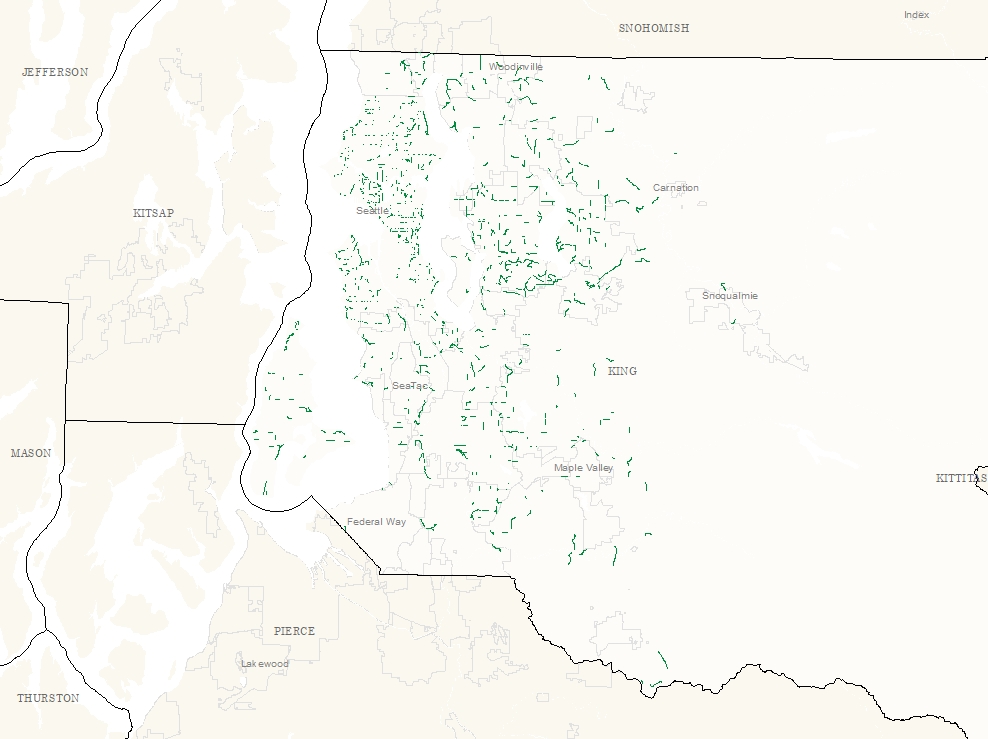

Segments of roads with steep grades.
Rate of grade is not inferred.
Beginning of arc depicts uphill direction.
This allows the arc to be symbolized in uphill direction.
Layer information
| Layer Name | road_gradient_line |
| Subject Category | Topography |
| Title | Steep Gradient on Roadways |
| Feature Count | 1060 |
| Feature Type | Line |
| Next Update | As needed |
| Spatial reference | EPSG:2926 |
| Control ID | 835 |
| Place Keywords | Washington State, Pacific NW, King County, WA |
| Theme Keywords | Gradient, Elevation, Bathymetry, Topo, Transportation |
| Supplemental Information |
None |
Attribute information
|
OBJECTID
From ESRI |
Description
Internal feature number. DomainSequential unique whole numbers that are automatically generated. |
|
GRAD_LVL
From King County |
Description
GRADIENT LEVEL Domain-9 - Not Used 0 - Not used in current version of BIKE_FACILITIES_LINE 1 - Used in current version of BIKE_FACILITIES_LINE |
|
Shape
From ESRI |
Description
Feature geometry. DomainCoordinates defining the features. |
|
Shape.STLength()
From SQL Server |
Description
Returns the total length of the elements in a geometry instance. DomainDouble |
Contact information
| Maintained by | KCGIS Center |
| Primary |
KCGIS Center
giscenter@kingcounty.gov |
Terms of Use
| License | Terms of use and copyright |
Use this Data
|
Links
How to use in ArcGIS Pro |
|
| Sharing Status | Not Public |
Summary
To show general areas of steep grade on Initial use has been to show gradient for those features for the BIKE_FACILITIES_LINE (bikemap) layer.
Therefore only selected features were encoded.
At the same time not all features apply to this layer.
Description
Segments of roads with steep grades.
Rate of grade is not inferred.
Beginning of arc depicts uphill direction.
This allows the arc to be symbolized in uphill direction.
Contact information
| Maintained by | KCGIS Center |
| Primary |
KCGIS Center
giscenter@kingcounty.gov |
Terms of use and copyright
| License | Terms of use and copyright |
Change history
| 1/1/2009 |
Updates were made to the layer for the production of the 2009 and 2010 bike maps. |
| 1/1/2008 |
Areas of steep slope were initially extracted from earlier versions of the bicycle use map. These locations were enchanced by using spatial analyst to reference a digital slope layer derived from 6-foot cell elevation data. The features were originally encoded as event tables on an underlying routes system. However, because maintaining the correct arc direction (for uphill) between the underlying geometry and the overlying event was problematic, this layer was detached as an event layer and maintained as a separate featureclass. |
